14mm Front Differential Bushing Upgrade - E36

High-horsepower BMWs put additional stress on the differential mounts, especially during hard launches, clutch kicks, and aggressive acceleration. On E36 drift cars, the factory front differential mounting bolt is a common failure point. Repeated shock loads can bend or break the bolt, particularly when worn differential bushings allow excessive movement.

Our 14mm Front Differential Bolt Upgrade addresses this weak point by replacing the smaller factory bolt with a larger M14 bolt. Combined with our rigid UHMW front differential bushing, the upgrade reduces differential movement and provides a stronger mounting connection under load.

The kit uses an OEM BMW grade 10.9 mounting bolt and our precision-machined UHMW bushing. The stiffer bushing limits unwanted differential movement during acceleration, clutch kicks, and sudden load changes.

Choose the front bushing and 14mm bolt upgrade on its own, or the complete differential bushing kit, which includes two additional rear differential ear bushings to replace all three differential mounting bushings.

Designed for high-horsepower street, drift, and track builds.

Features

• Upgrades the factory front differential mounting bolt to 14mm
• Addresses a common front differential bolt failure on E36 drift cars
• OEM BMW M14 grade 10.9 mounting bolt
• Rigid UHMW bushings reduce differential movement under load
• Helps manage repeated clutch kicks and drivetrain shock loads
• Available with or without rear differential ear bushings
• UHMW bushings made in the USA

Kit Options

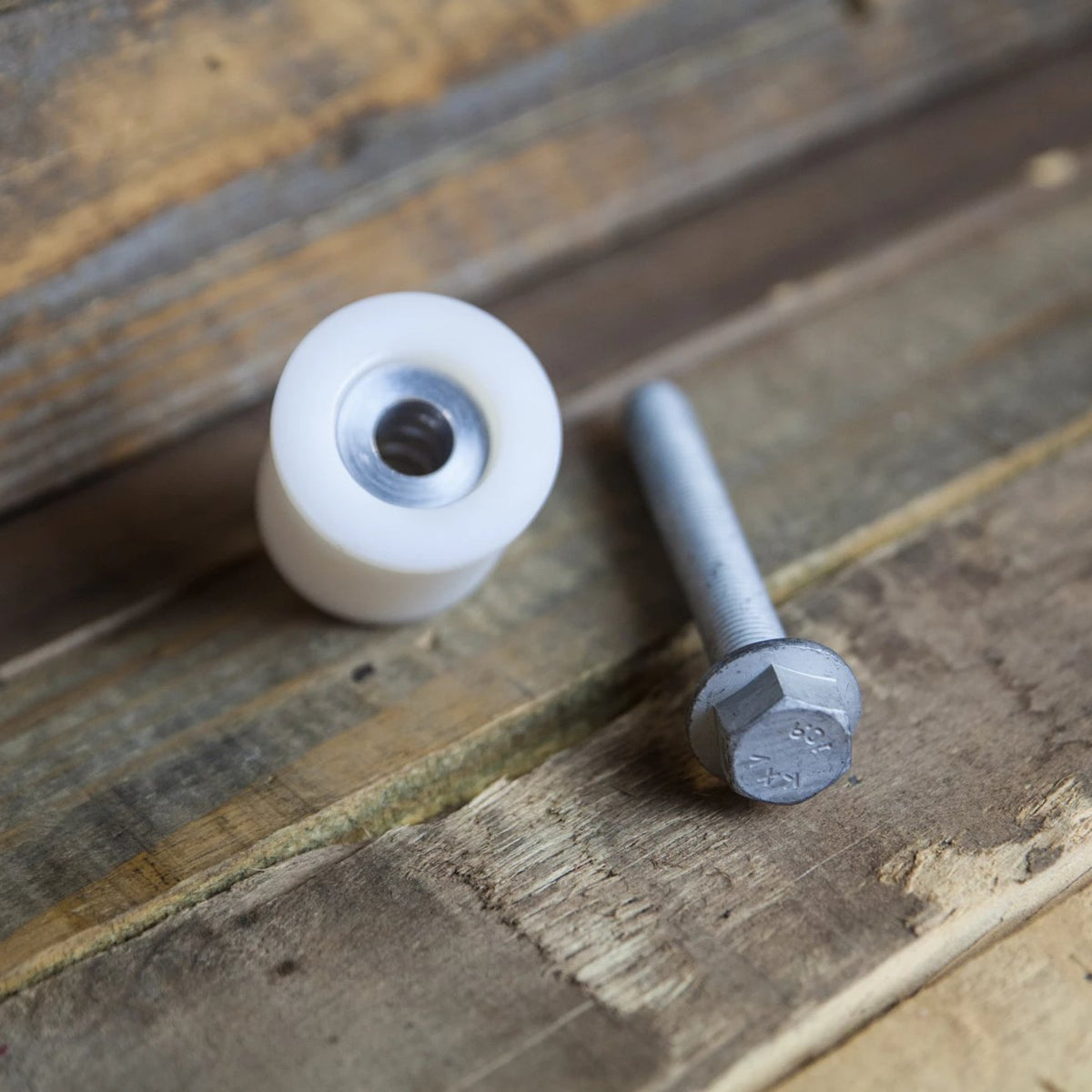

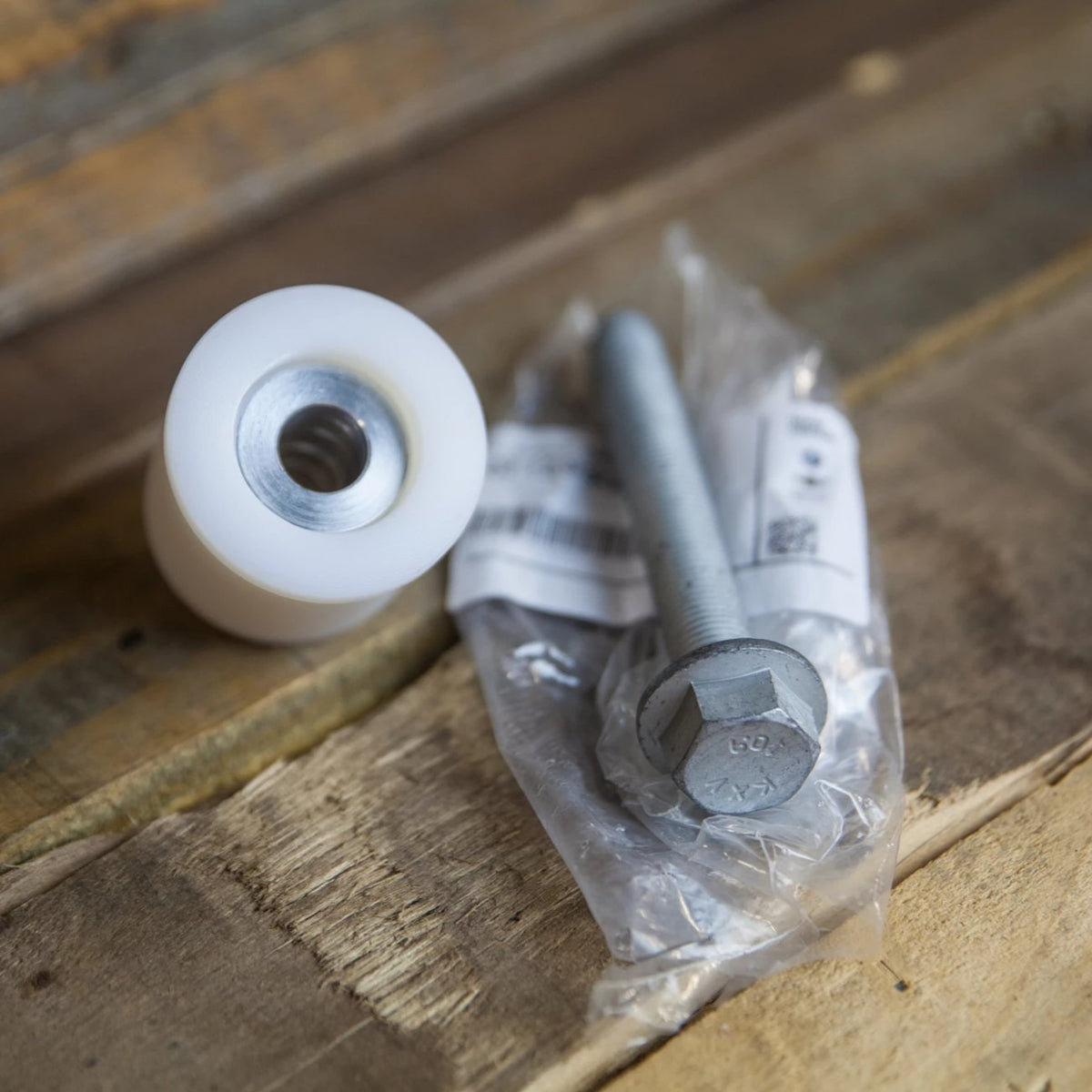

Front Bushing + 14mm Bolt

• 1 UHMW front differential bushing sized for the 14mm bolt
• 1 OEM BMW M14 grade 10.9 mounting bolt

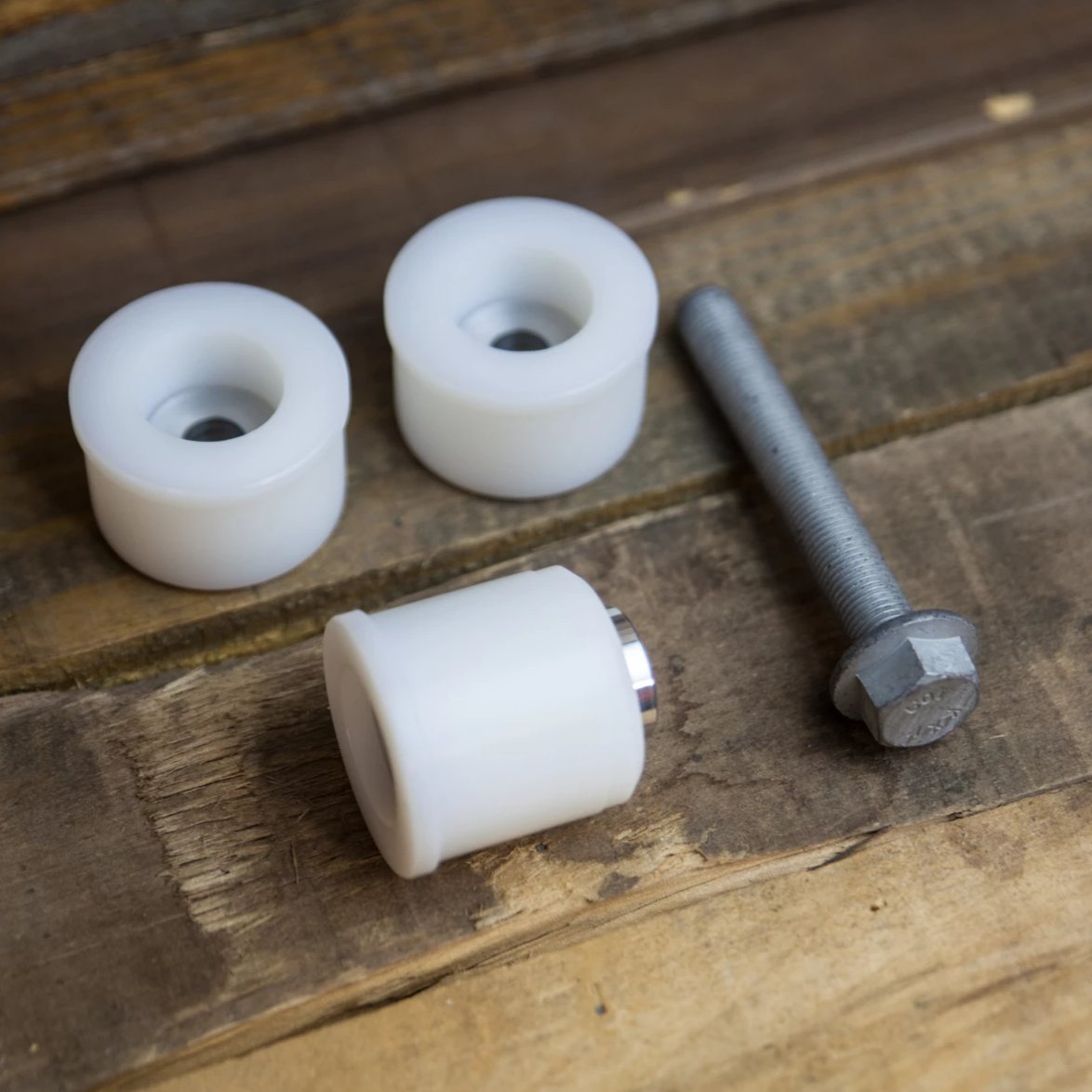

Complete Kit + 14mm Bolt

• 1 UHMW front differential bushing sized for the 14mm bolt
• 2 UHMW rear differential ear bushings
• 1 OEM BMW M14 grade 10.9 mounting bolt

Installation Note

The 14mm upgrade requires drilling and tapping the front differential mounting hole to M14x1.5. This is not a direct bolt-on replacement. Proper machining is required before installation.

Fitment:
3 Series E36 (92-99) - 318i, 318ic, 318is, 323ic, 323is, 325i, 325ic, 325is, 328i, 328ic, 328is, M3

Installation Video:
