CONSTRUCTION

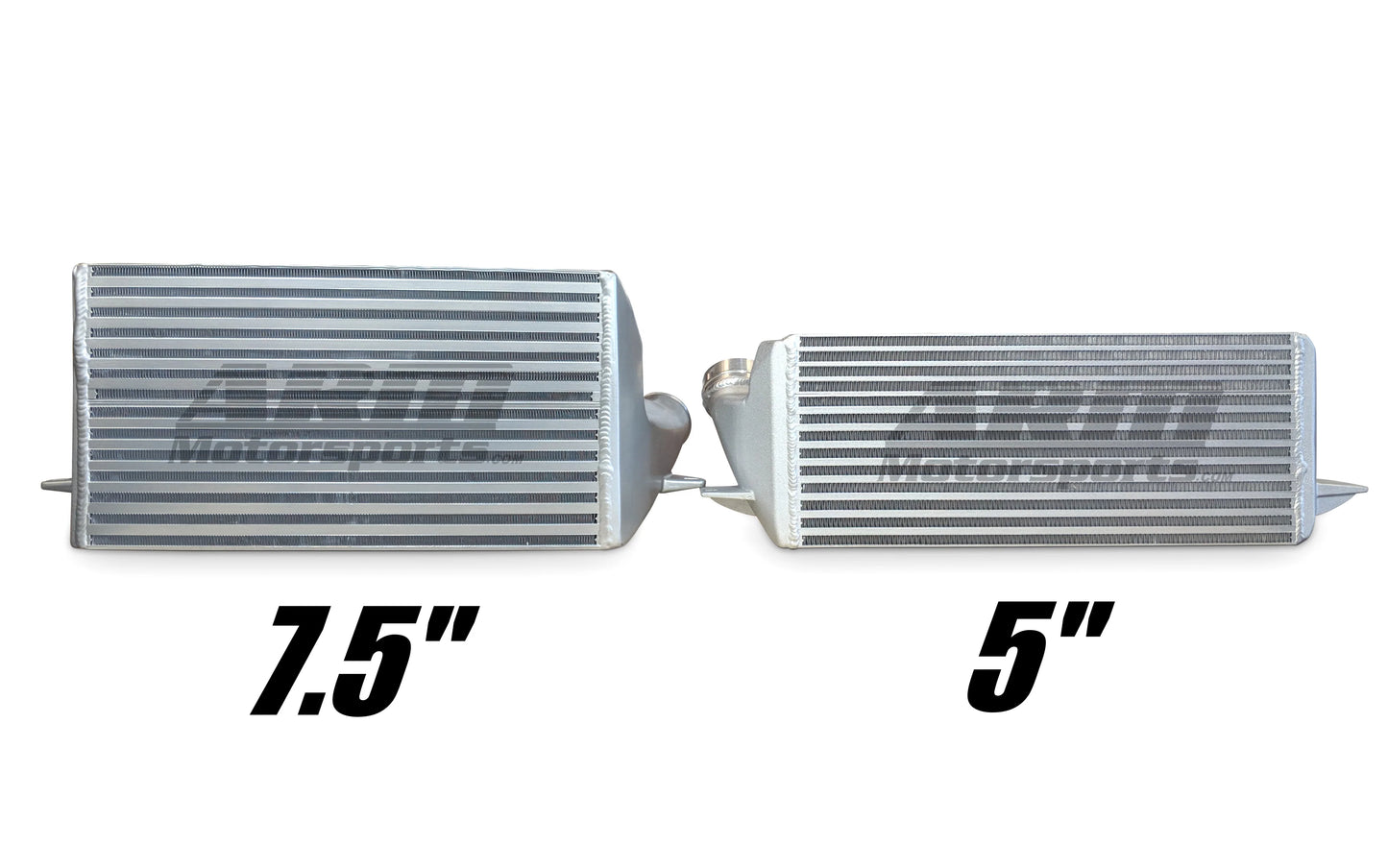

The foundation of the ARM 1K FMIC is it's massive core with a volume of 1,155cu in. Measuring in at 20"x11"x7.5" it is 270% bigger than the stock intercooler and one of the largest FMIC's available for the E-Series BMW.

Size does matter, but it's not the whole story. Which is why the ARM 1K FMIC utilizes an ultra-dense fin pack of 20 fins per inch to maximize the volume of it's huge core.

Combine the over-sized core with the ultra-dense fin packs of the 1K FMIC and you have one of the best performing intercoolers available for the E-Series BMW.  Below is a datalog from our project 335xi equipped with upgraded turbos, supporting modifications, and our ARM 1K FMIC.  During 3rd gear datalogs we were seeing only 5 degree increases in IAT's from the beginning of the run to the end, the starting IAT being 59 degrees Fahrenheit, and still an icy cool 64 degrees at the finish.

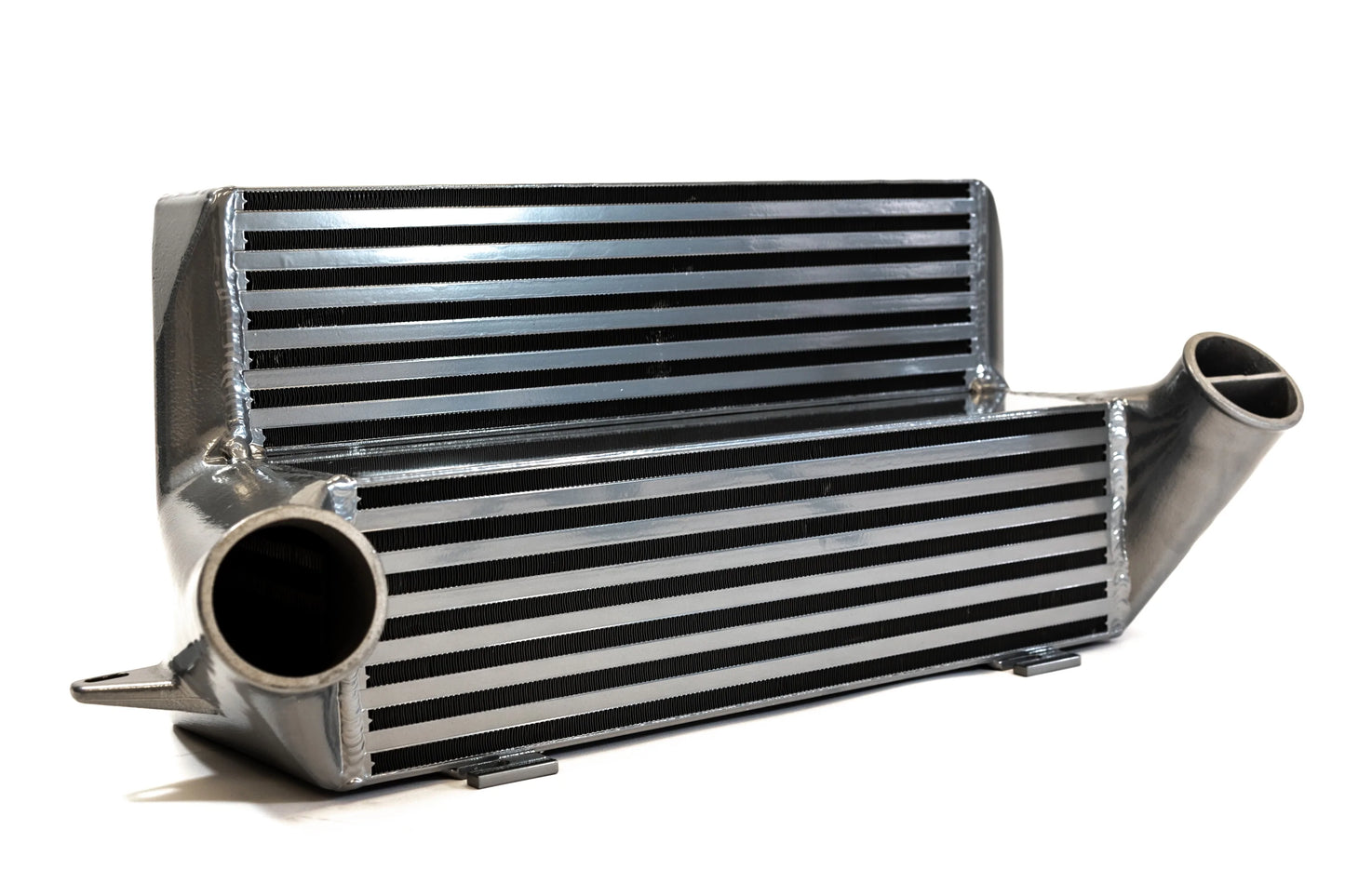

The ARM 1K FMIC end-tanks are designed with smooth transitions and geometry to improve airflow and maximize power. The end-tanks feature 3" inlet and outlet ports with fluid transitions from the turbos and to the charge pipe to minimize turbulence.  The ARM 1K FMIC features a cast fin integrated into the inlet port to distribute the charge air more uniformly over the intercooler core.  This fin directs charge air upward in the end tank to fill the stepped portion of the FMIC core more completely to more effectively cool the charge air.
