GiroDisc - Front Iron Rotor Conversion PCCB || 991/992 GT3/GT2RS/GT4RS
GiroDisc - Front Iron Rotor Conversion PCCB || 991/992 GT3/GT2RS/GT4RS
Regular price
$2,696.00 CAD
Regular price
Sale price
$2,696.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
No reviews

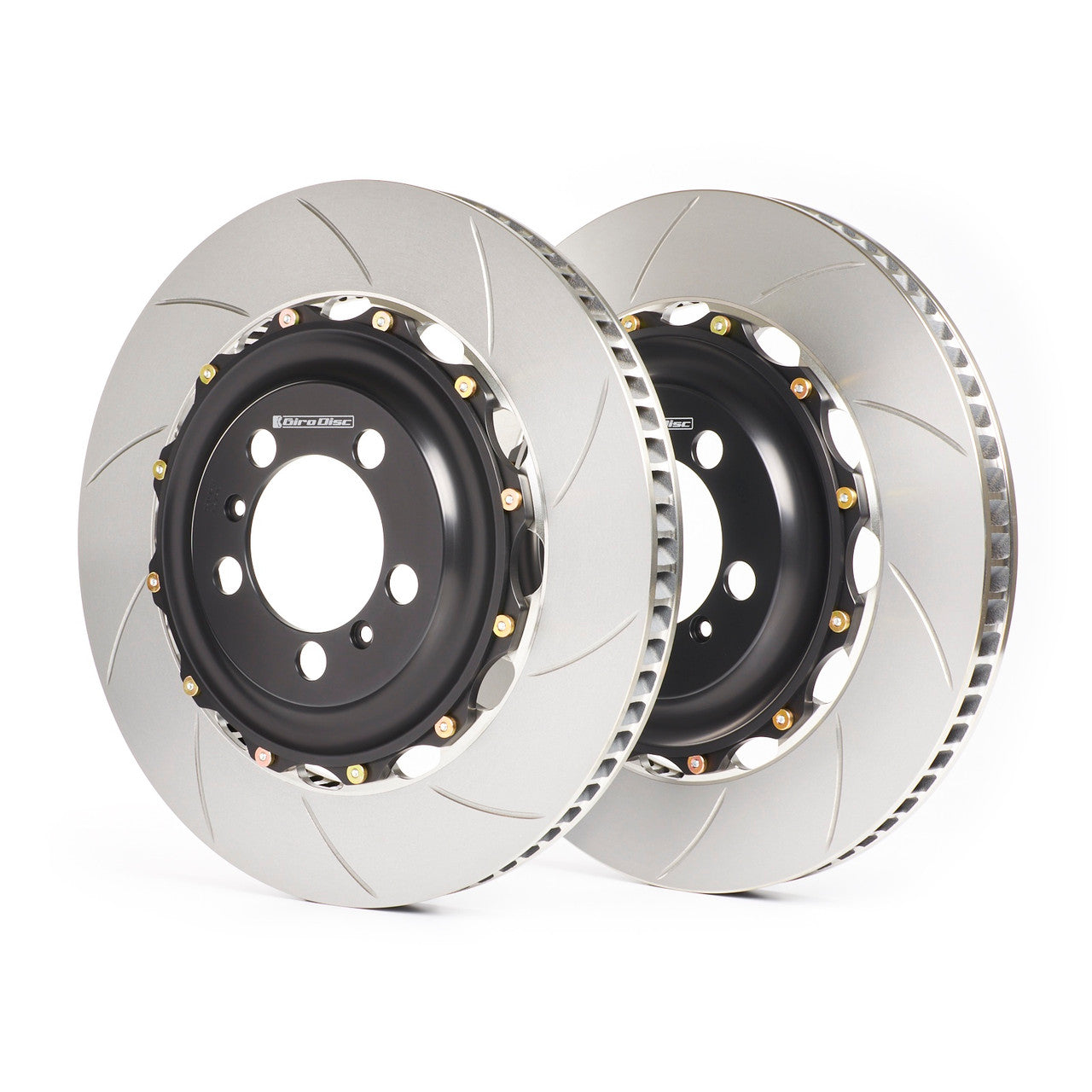

The Girodisc system is a direct replacement for the OE disc however you must use the same pad shape that is used on the 991 GT3 that came with the iron rotors from the factory. The annulus (pad swept height) of these pads is smaller than the large PCCB pads, this is done to keep the rotor weight at a reasonable level and allow far better pad selection. If we manufactured a rotor with the same annulus as the OEM PCCB rotors they would be unnecessarily heavy.
The central hat section of our rotor is made from strictly U.S.-sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA, and machined from start to finish in-house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 12 high-strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for long-lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self-center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced in pairs
The central hat section of our rotor is made from strictly U.S.-sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA, and machined from start to finish in-house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 12 high-strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for long-lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self-center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced in pairs
