Girodisc
GiroDisc - Front Rotors || S550 Brembo
GiroDisc - Front Rotors || S550 Brembo
Regular price
$1,562.00 CAD
Regular price
Sale price
$1,562.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
No reviews

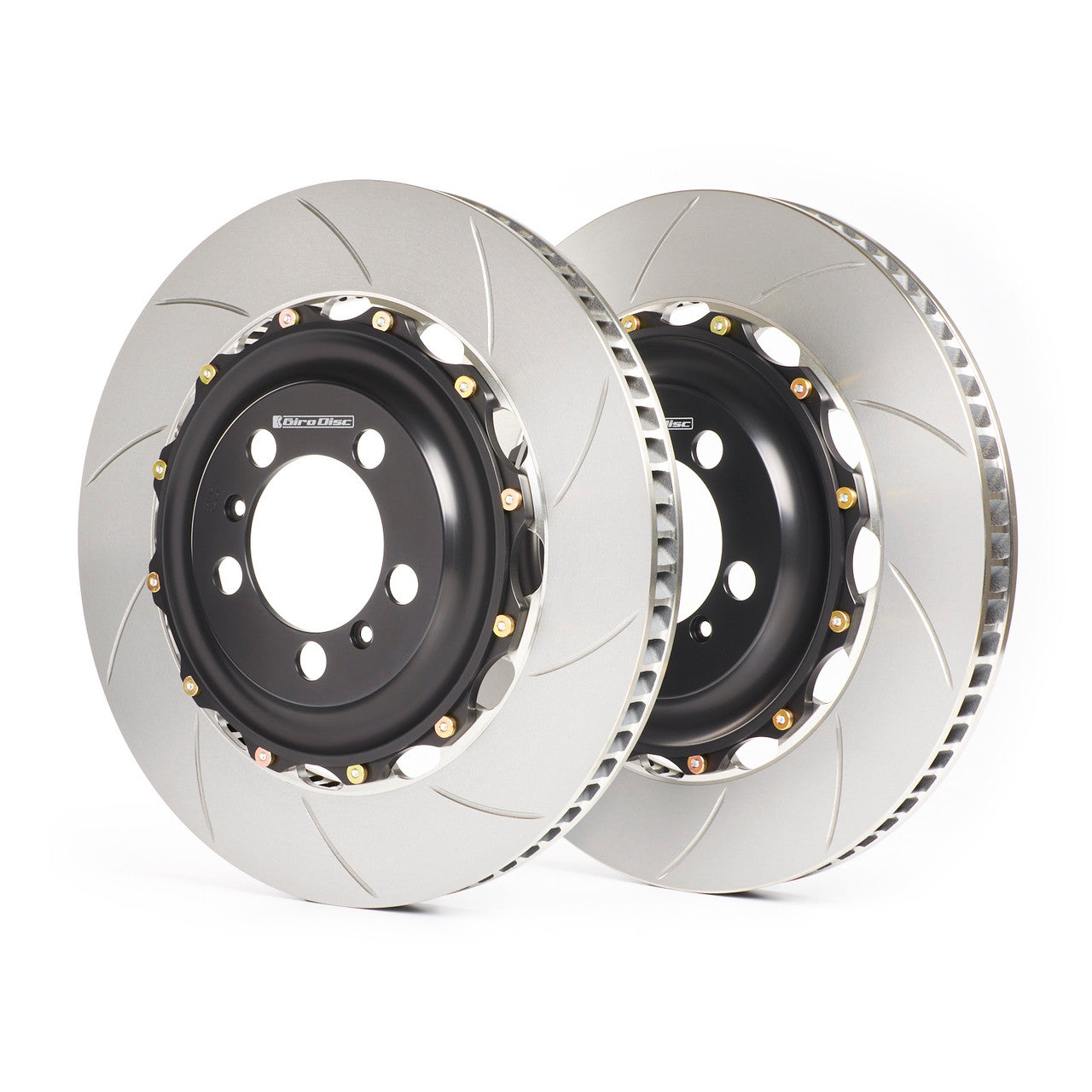

This is a 380mm x 34mm rotor for use with the S550 Mustang GT with the optional performance package six piston Brembo calipers, including all Bullitt and Mach 1 models.
The Girodisc system is a direct replacement for the OE disc. No modifications are necessary. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high-performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Girodisc front rotors are approx 24.1 lbs vs. 33.4 lbs for the stock units. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
The central hat section of our rotor is made from strictly U.S.-sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA, and machined from start to finish in-house at Girodisc. The rotor utilizes 72 internal curved vanes, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 8 or 10 high-strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long-lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self-center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced per pair.
The Girodisc system is a direct replacement for the OE disc. No modifications are necessary. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high-performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Girodisc front rotors are approx 24.1 lbs vs. 33.4 lbs for the stock units. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
The central hat section of our rotor is made from strictly U.S.-sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA, and machined from start to finish in-house at Girodisc. The rotor utilizes 72 internal curved vanes, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 8 or 10 high-strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long-lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self-center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced per pair.
