NexGen GR86 Flex Fuel Kit - CAN bus

The Visconti Tuning NexGen Flex Fuel Kit for the Toyota GR86 provides a fully CAN bus integrated ethanol content monitoring system designed to communicate directly with the factory ECU.

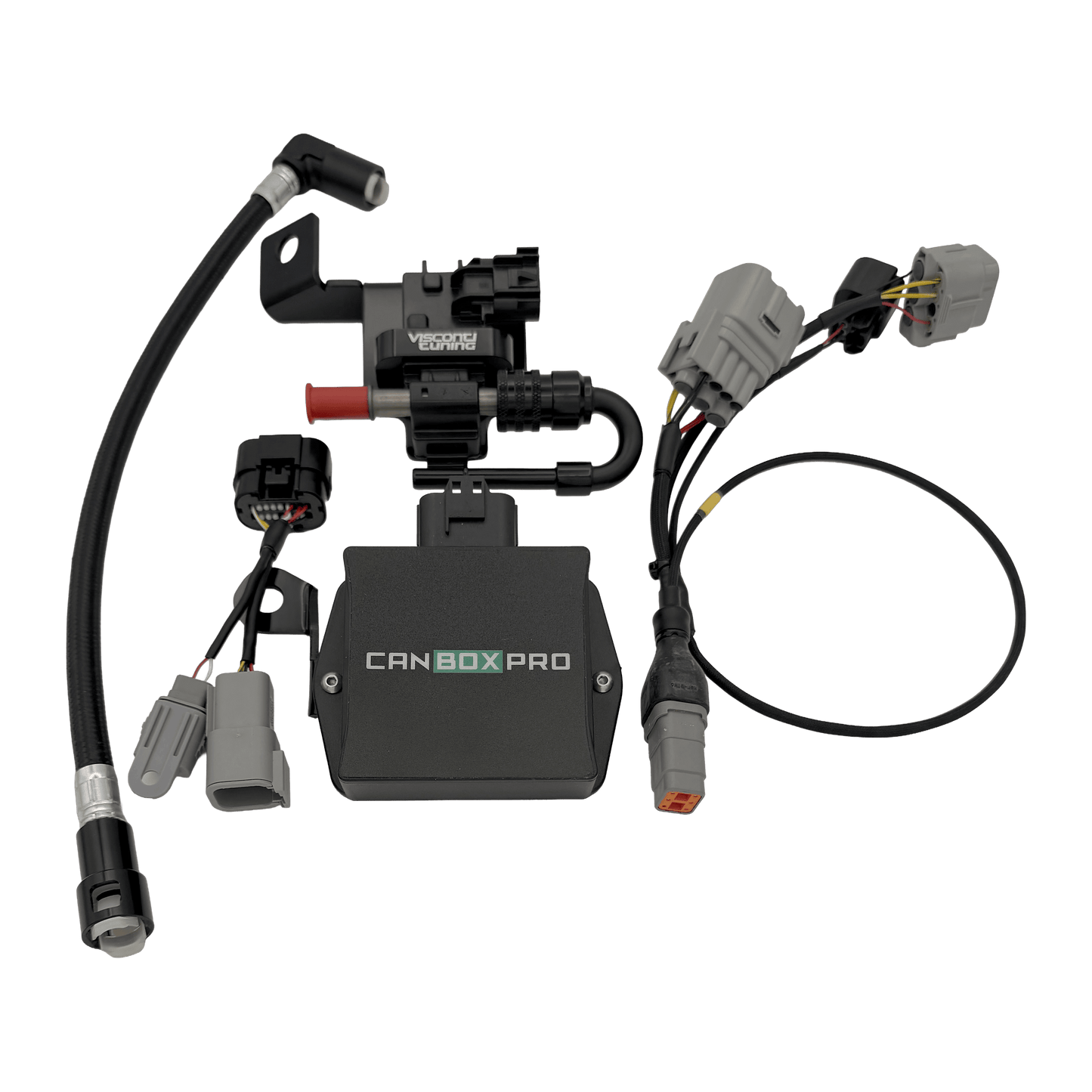

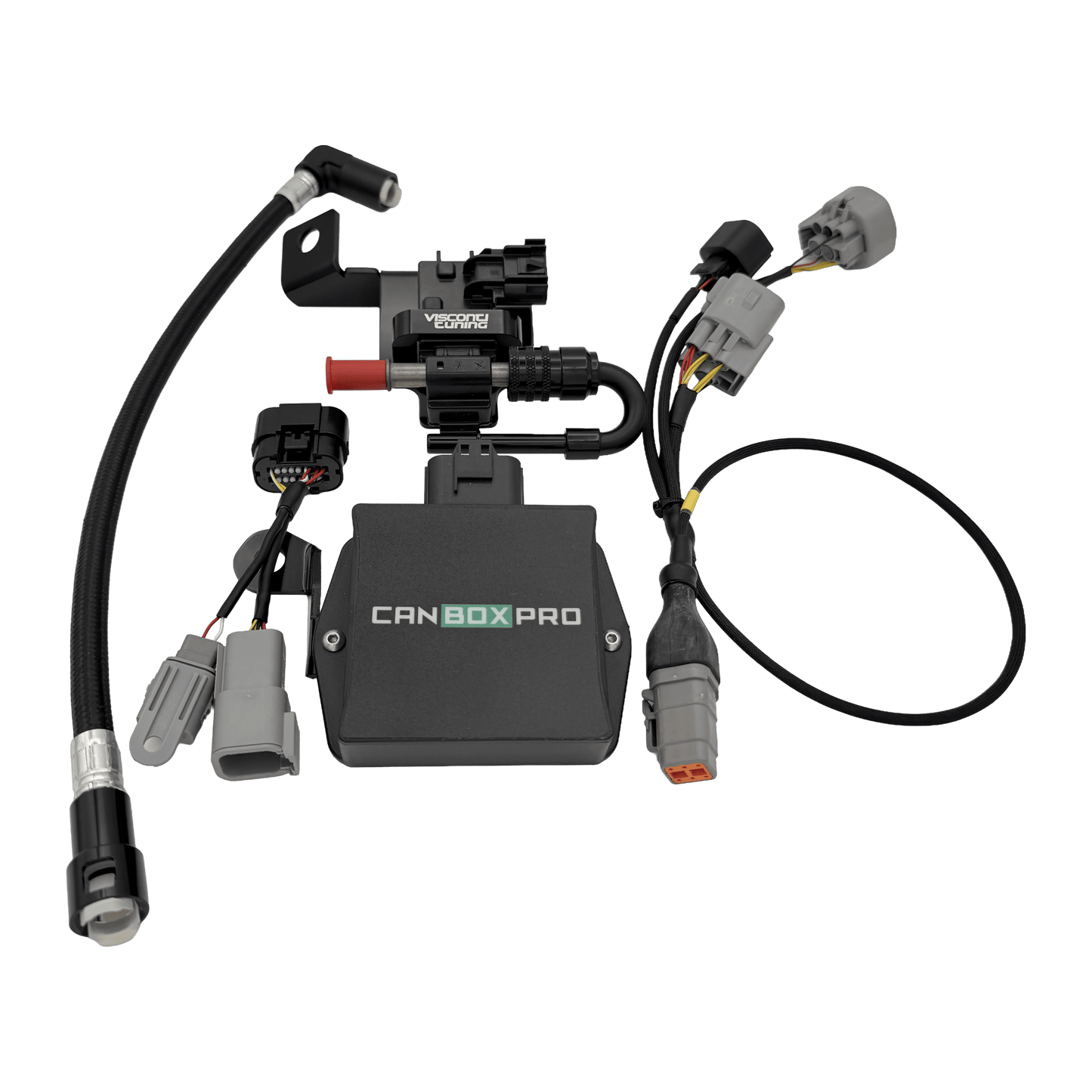

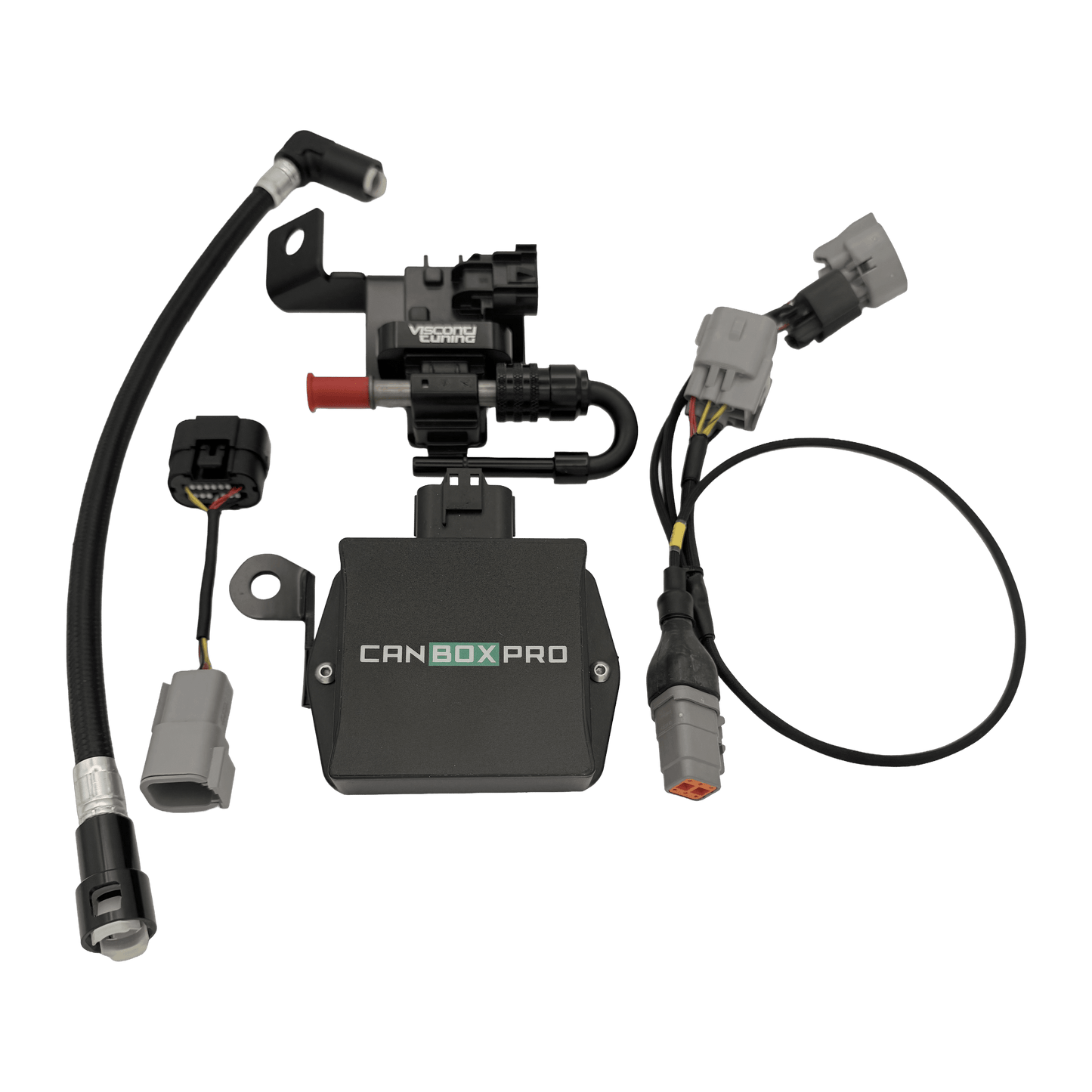

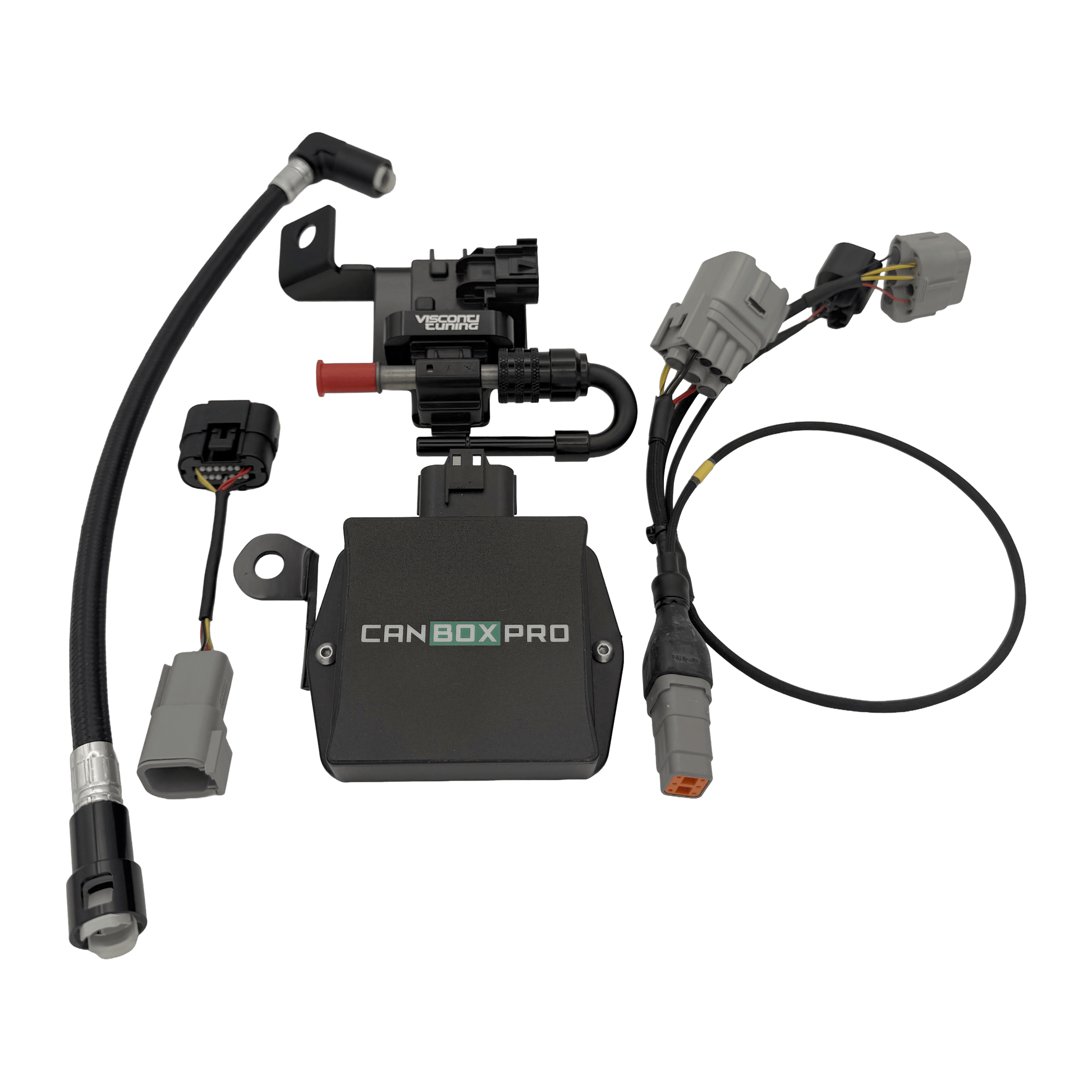

What's included with the kit:

• Zip Ties

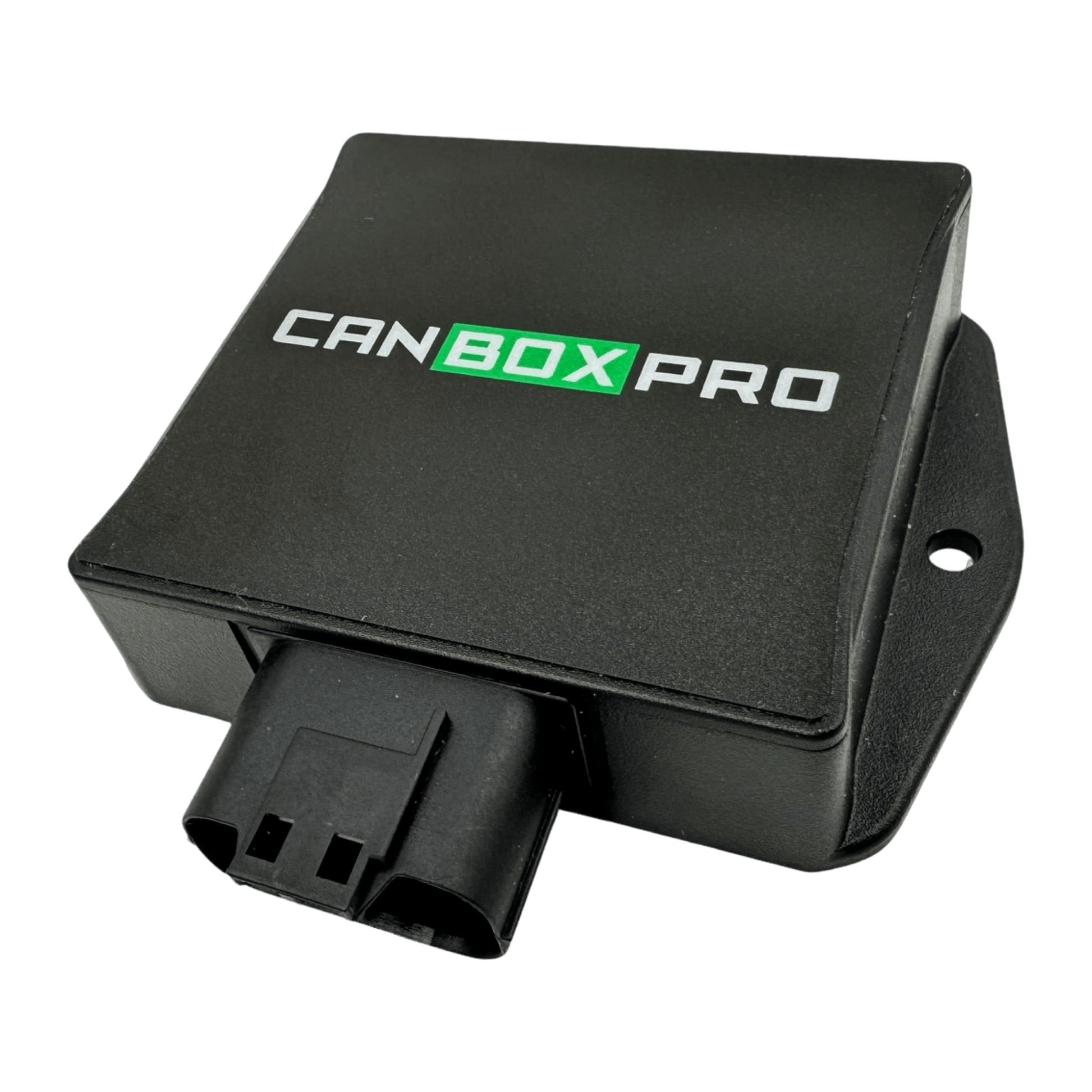

• Visconti CANBOXPRO (Ethanol Content Analyzer)
• Visconti CANBOXPRO Adapter Harness
• Visconti GR86 CAN bus Sub harness
• Visconti Quick Connect Black PTFE Fuel Line
• GM Ethanol Content Sensor on Billet Bracket with 90 degree quick connect fuel fitting

This is a 100% Plug and Play Flex Fuel Kit. This requires no wires to be cut or spliced. This kit communicates over CAN bus and does not require any codes or sensors to be removed or disabled. No wires need to be passed through the firewall.

For complete functionality this will require an EcuTek Flex Fuel Enabled Tune.

Install takes less than 10 minutes.

NOTE (11-PIN vs 8-PIN): Due to a harness change during the 2023 model year, there are two different CAN bus connectors in the BRZ/GR86. Vehicles from 2022 to Early 2023 use the 11-PIN connector, and Late 2023+ vehicles use the 8-PIN connector. Please verify which connector your vehicle has before ordering. The connector is mounted near the strut tower bar on the left side of the vehicle (driver side in the US).

We take pride in knowing the name of every individual involved in producing this kit. The harnesses are proudly handmade in the USA with automotive-grade TXL XLPE insulated wire and assembled in an ISO 9001 Certified Facility.
