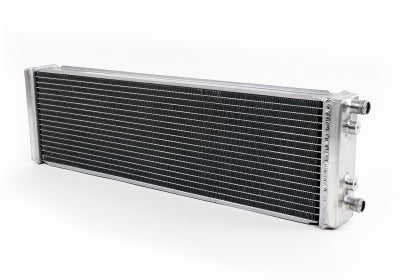

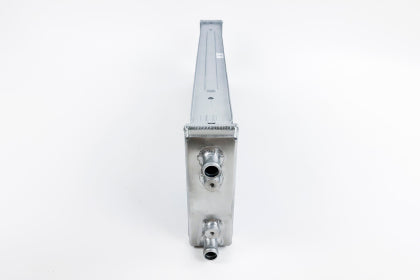

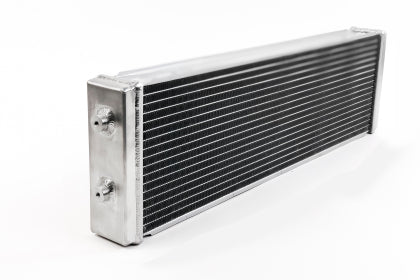

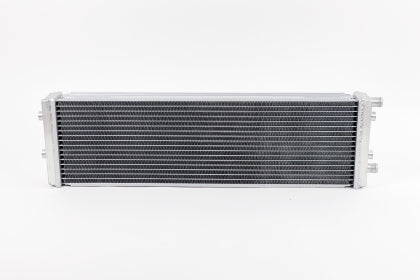

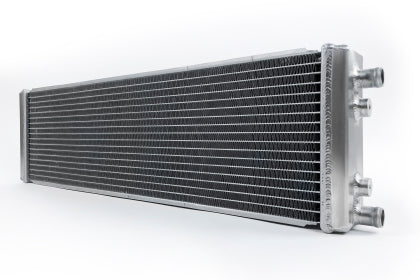

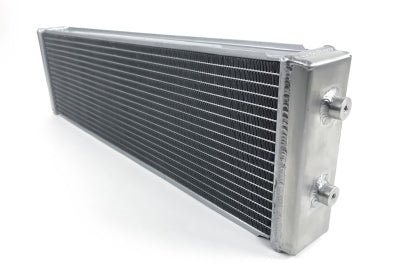

The ultimate universal dual-pass cross flow heat exchanger is the ideal option for you custom project. This cooler can be used as an Air-to-Water Intercooler Heat Exchanger, Small Radiator, or Auxiliary Radiator. The dual 3/4 inch (19mm) slip on connections allow for easy fluid line connections. Can be mounted in any orientation.
Features and Benefits
100% All Aluminum TIG-Welded Construction
2-Row 42mm Ultra High-Performance Core
6.5mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology

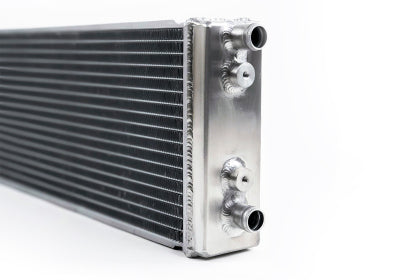

3/4" (19mm) slip-on connections
CNC Machined Mounting Brackets
Smooth Satin Finish
2-Year Limited Warranty
Individually Leak Tested
All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development, Including Burst Pressure, Thermal Cycle, Vibration Testing, and Salt Spray Testing
