Dorch Engineering - HPFP Stage 1 || N55 (E9X,F3X)
This is a complete plug-and-play kit to support up to 530whp on E10 fuel (this number can vary quite a bit depending on tuning strategy and the blend of ethanol). There’s no cutting, no bending, no crimping, etc. This kit drops right in with full control from the DME, just like the OEM pump. All of the safety and sophistication of the stock DME remain in place.
N55 HPFP Flow CapacitiesThe table below serves as a reference for maximum fuel flow in cubic centimeters per camshaft revolution for various N55 fuel pump options. These calculations are based on the stock N55 cam lobe unless otherwise noted (Lift Kit).
|Pump Model||Fuel Flow (cc/rev)||Fuel Flow w/ Dorch Lift Kit (cc/rev)|
|HDP5 (Stock N55)||0.837||NOT COMPATIBLE|
|HDP5 Evo (Stock B58)||0.897||NOT COMPATIBLE|
|HDP6 (Stock B58TU)||1.107||NOT COMPATIBLE|
|Dorch Engineering Stage 1||1.221||1.818|
|Dorch Engineering Stage 2||1.465||2.181|
NOTE: When combined with our N55 Lift Kit, this pump is capable of 750whp on E10 and 600whp on E85!
Software changes are required to run this pump. If using MHD or Bootmod3, simply check the box for our pump upgrade when flashing.. Otherwise, please send your .BIN file to firstname.lastname@example.org for the appropriate software changes. This change is free of charge for all of our customers.

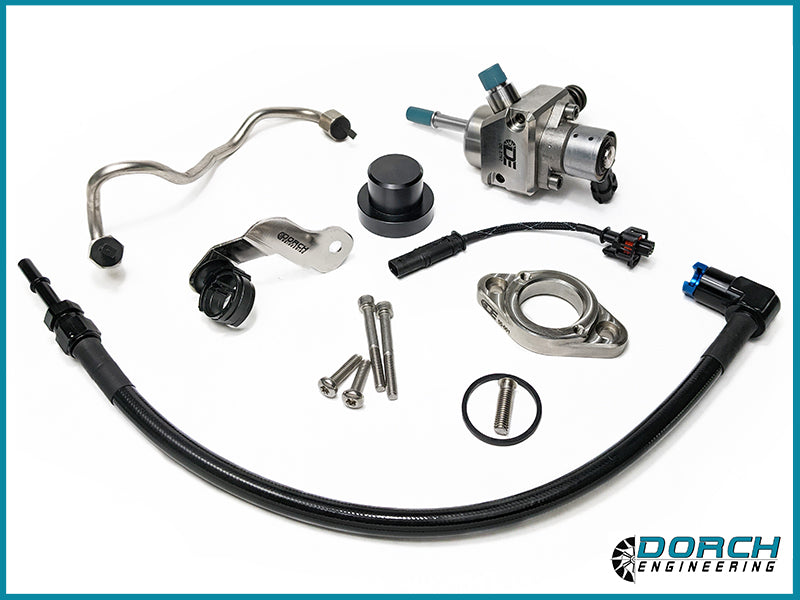

- Dorch Lifetime Warranty
- HPFP w/ Hardware
- High Pressure Line
- Low Pressure Line
- Low Pressure Line Bracket
- Plug-n-Play Adapter Harness
F87 – M2
F20/21 – 135i, 135xi
F22/23 – 235i, 235xi
F30/31/34 – 335i, 335xi
F32/33/36 – 435i, 435xi
F10/11 – 535i, 535xi *
F25/26 – X3/X4 35i *
F15/16 – X5/X6 35i
E8X – 135i *
E9X – 335i *
E84 – X1 35i *
E70/71 – X5/X6 35i *
*ONLY 2013+ models with OE Bosch HPFP
KIT NOT COMPATIBLE with 2011-2012 N55 Vehicles
