NOTE: Stage 2 HPFP kits are currently backordered. All backorders and new orders are processed in the order they are received and the current ETA is 3-4 weeks.
We are proud to offer the world’s first B58 HPFP upgrades! Our Stage 2 kit is a bigger, better version of our Stage 1 kit for some of the more extreme applications. This is a complete plug-and-play kit to support up to 700whp and also allow for full E85 up to 550whp (these numbers can vary quite a bit depending on tuning strategy, fuel type, etc.). There’s no cutting, no bending, no crimping, etc. This kit drops right in with full control from the DME, just like the OEM pump. All of the safety and sophistication of the stock DME remain in place.
B58 HPFP Flow CapacitiesThe table below serves as a reference for maximum fuel flow in cubic centimeters per camshaft revolution for various B58 fuel pump options. These calculations are based on the B58 cam lobe. Each engine will have varying fuel flow capacities depending on the lift and number of lobes on the camshaft.
|Pump Model||Fuel Flow (cc/rev)|
|HDP5 Evo (Stock B58)||.954|
|HDP6 (Stock B58TU)||1.178|
|Dorch Engineering Stage 1||1.299|
|Dorch Engineering Stage 2||1.558|
Software changes are required to run this pump. If using Bootmod3, MHD, or MG Flasher, simply check the box for our pump upgrade when flashing. Otherwise, please send your .BIN file to firstname.lastname@example.org for the appropriate software changes. This change is free of charge for all of our customers.

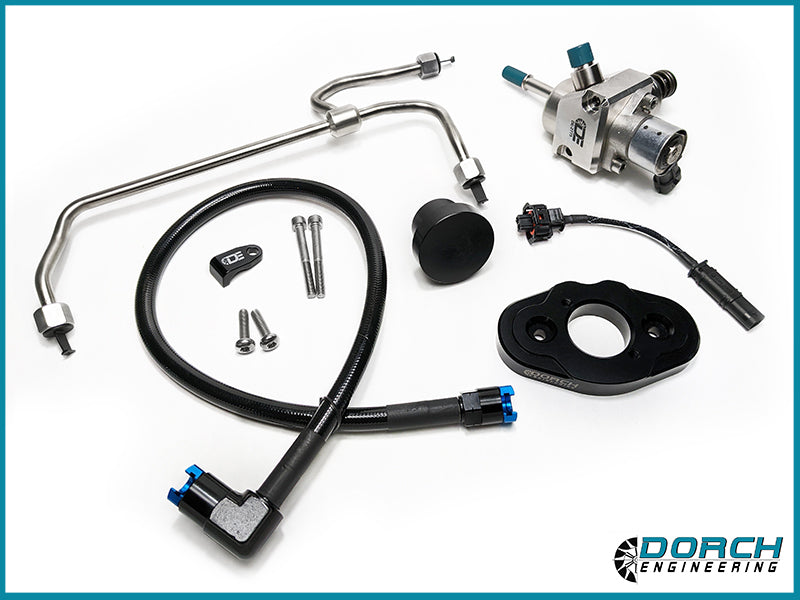

- Dorch Lifetime Warranty
- HPFP w/ Hardware
- High Pressure Line
- Quick Connect Low Pressure Line
- Low Pressure Line Bracket
- Plug-n-Play Adapter Harness
F20/21 – 140i, 140xi
F22/23 – 240i, 240xi
F30/31/34 – 340i, 340xi
F32/33/36 – 440i, 440xi
G30/31 – 540i, 540xi *
G32 – 640i, 640xi *
G11/12 – 740i, 740xi *
G01 – X3 m40i *
G02 – X4 m40i *
* ONLY UP TO 2019 Model Year
KIT NOT COMPATIBLE with 2020+ B58 Vehicles
